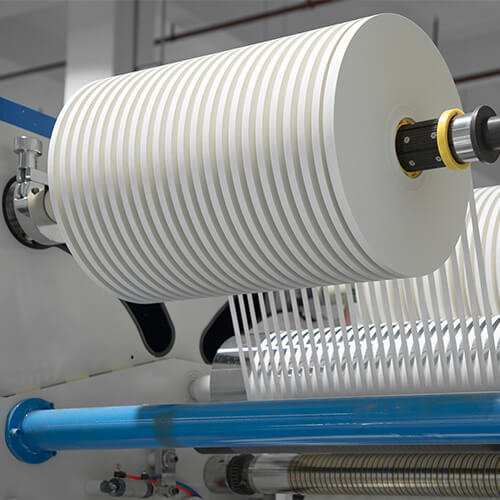

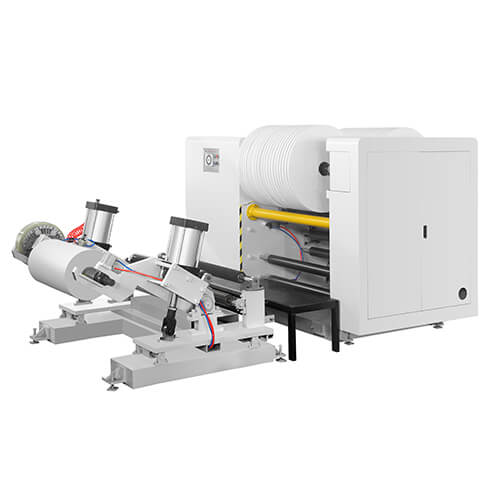

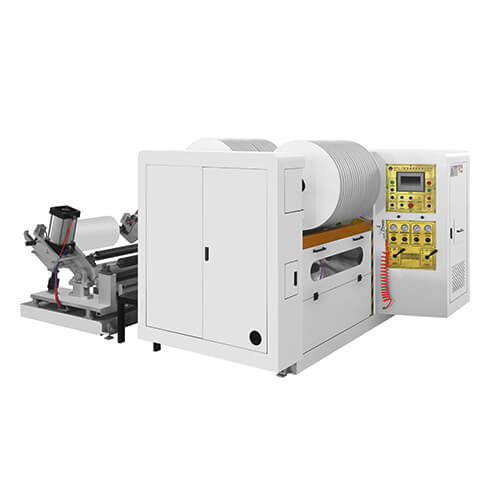

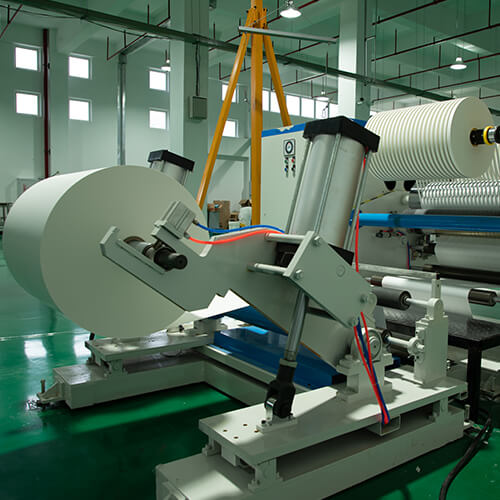

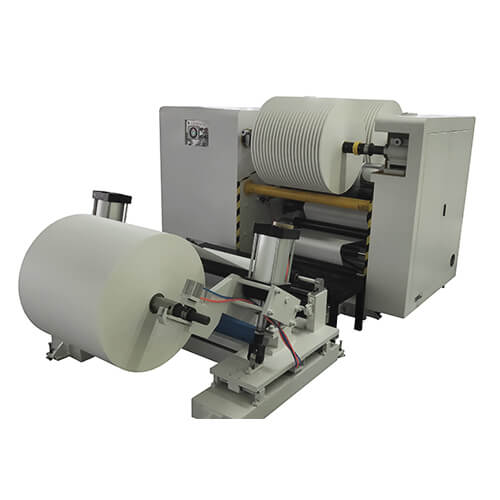

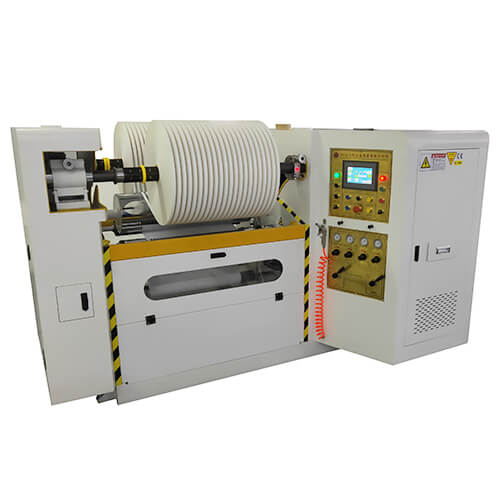

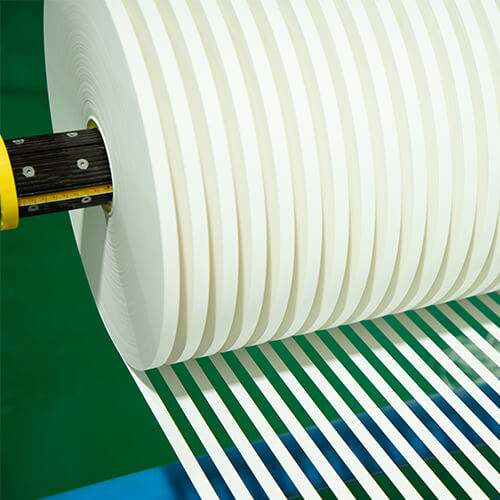

RB8001 Paper Rolls Slitting and Rewinding Machine

RB8001 is the slitter machine for the raw kraft paper material of paper straws. It is high speed, suitable for paper weight of 12 to 200 gsm.

Thank you for reading this post, don't forget to subscribe!

Adopt Siemens brand PLC control , web guider ,rewinding automatic tension control, air shaft, auto air pressure, rewinding shaft automatic up/down, Converter control working speed, auto-counting meter.

Thank you for reading this post, don't forget to subscribe!

Technical Data

Main ConfigurationLoading and  Web guider, slitter, rewinding, transmission mechanism, electric control parts.Dimension（LXWXH）2800×2100×1550mm
Max. Loading material diameterφ1200mmMax. Rewind diameterφ800mm
Air shaft diameter3inRewind shaft diameter3in
Cylinder Width850mmMax.dry speed≤300m/min
Max. Material width
700mmMin width of slitter10mm
Precision of web guiding±0.3mmMain motor power5.5KW*1set
Rewinding motor power
4KW*2setTotal power13.5KW
